《お取り寄せ商品》iBeacon Module (Bluetooth 4.0)
送料区分: 650
商品コード: DFROBOT-TEL0095
発売日: 2018-11-21
短いURL: ssci.to/5154
この商品は取寄商品です
本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。
本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。

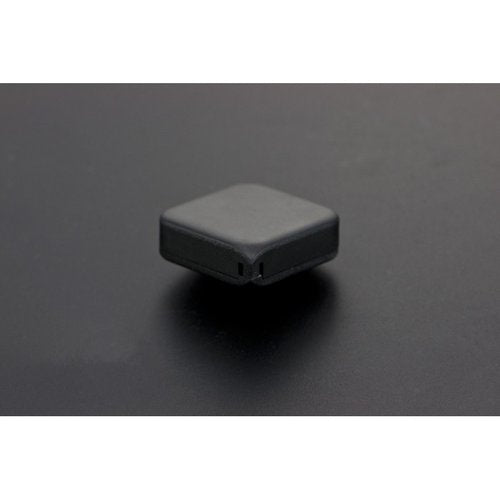

Introduction
What is iBeacon?
iBeacon is a protocol standardised by Apple and introduced at the Apple Worldwide Developers Conference in 2013. Various vendors have since made iBeacon-compatible hardware transmitters - typically called beacons- a class of Bluetooth low energy devices that broadcast their identifier to nearby portable electronic devices. The technology enables smartphones, tablets and other devices to perform actions when in close proximity to an iBeacon.
What can I do with iBeacon?
One application is distributing messages at a specific Point of Interest, for example a store, a bus stop, a room or a more specific location like a piece of furniture or a vending machine. This is similar to previously used geopush technology based on GPS, but with a much reduced impact on battery life and much extended precision (from a few metres down to a few centimetres).
Another application is an indoor positioning system, which helps smart phones determine their approximate location or context. With the help of an iBeacon, a smartphone's software can approximately find its relative location to an iBeacon in a store. Brick and mortar retail stores use the beacons for mobile commerce, offering customers special deals though mobile marketing, and can enable mobile payments though point of sale systems.
How to push messages via iBeacon?
Despite the misunderstanding that push message is achieved via base station, iBeacon actually only provides location-based services. To push messages, users need to develop an APP, install it in phone, and run corresponding services in the background. For example sales promotions are pushed into user's devices when in store range, the message is fetched via the App, not via iBeacon. To be more specific, when the APP receives iBeacon location information, after calculating your current location in accordance with the specific conditions of the you set, the APP requests advertising data from server and pushes corresponding data to your device, and that makes one complete iBeacon push message. That is to say, to achieve dynamic information push requires at least an APP and a data server.
This product is comes with a dedicated iOS APP - LightBeacon, for configurating the individual module or by batch, and can detect iBeacons with Apple standards.
NOTE: The come along battery inside the case might be low battery, you have to exchange it to make it discoverable.
Specification
- Model: IBc41
- Chip: TI CC2541 (BLE4.0)
- Power: CR2450 button battery
- Support low power, average power consumption 30uA (800ms broadcasting)
- Battery life: 1.5 years
- Compatible with Apple, Estimote
- Customizable UUID, Major,Minor
- Customizable radio intervals, transmit power
- Support ITU detection
- Support OAD technology, wireless firmware update
- Support repair password
- Range: 30~50 m (1181~1969")
Documents
ShippingList
- Ghostyu iBeacon Module x1
上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。
商品コード: DFROBOT-TEL0095
