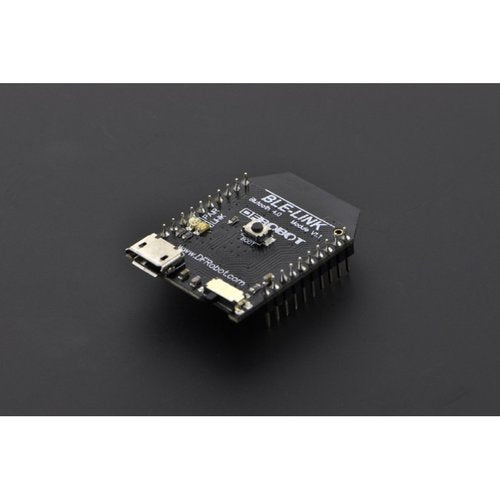

《お取り寄せ商品》Bluno Bee - Turn Arduino to a Bluetooth 4.0 (BLE) Ready Board

送料区分: 650

商品コード: DFROBOT-TEL0073

発売日: 2018-11-21

短いURL: ssci.to/5141

この商品は取寄商品です

¥1,857 (税込)
¥1,857 - ¥1,857
Current price ¥1,857

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

Bluno Bee is a serial to bluetooth 4.0 module, it adopts XBEE form factor which is compact and is compatible with all shields with XBEE socket. Bluno Bee is designed to have voltage regulator which supports both 5V and 3.3V MCUs.

Bluno Bee is talking to your Arduino serial port , and able to turn your arduino to bluetooth 4.0 (BLE) ready instantly. Simply get an Arduino IO Sensor Expansion Shield and plug this module to xbee socket, you have an Arduino BLE ready board.

With two Bluno Bee, two arduino are able to communicate with each other via Bluetooth. Y
ou can enjoy features like point-to-point wireless transparent transmission, master-slave machine setting, wireless code (sketch) uploading and HID connection with PC.

For more compact size or want an all in one arduino ble board, we recommend our Bluno series, they are based on Arduino Uno or Arduino Mega and with Bluetooth 4.0 (BLE) build-in, they are more cost effective and compact.

We've also developed Apps (Play Bluno) on both Android and IOS platform for you to start playing between phone and arduino immediately. At the same time, we provide developers more freedom and support: users can not only debug
Bluno - An Arduino Bluetooth 4.0 (BLE) Board
through AT command, but also update BLE chip firmare via USB.

It is suitable for applications like wearable device, for example a smart pedometer bracelet with Arduino + Android/IOS. By linking into star network of low power consumption, BLE achieves rapid real-time communication.

Features

  • AT command to debug the BLE
  • support the master-salve machine switch
  • Transparent transmission
  • Wireless programming for Arduino processor (Compatible with Arduino UNO,Fio and Mega)
  • support usb update BLE chip program
  • support bluetooth HID
  • convenient to upgrade firmware of BLE
  • support Android and IOS applications,open source code,suitable for secondary development by the user

Specification

  • Chip:TI CC2540>
  • Working Voltage: +3.3 -5v DC
  • Power consumption: working: 10.6mA average, ready mode: 8.7mA
  • Pin Layout: Compatible with Xbee pinout
  • Frequency: 2.4GHz
  • Transfer rate: ≤1Mbps
  • Modulation: GFSK, bluetooth low power, V4.0
  • Sensitivity: -93dB
  • Operating temperature: -40 ℃ ~ +85 ℃
  • Transmission distance: 60m in free space
  • Size:32mm * 22mm (1.26 * 0.87")

Documents

Hardware Compaitibility

Demo Tutorial

ShippingList

  • Bluno Bee x1
