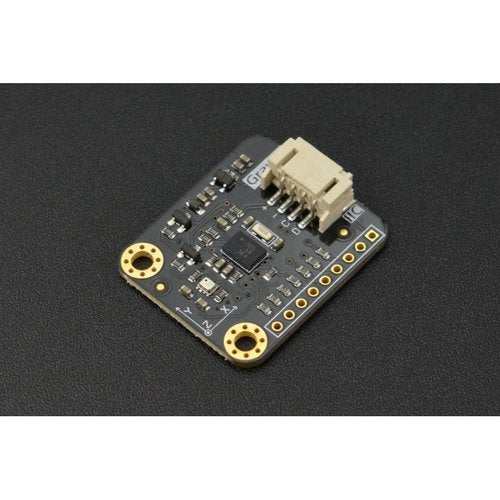

《お取り寄せ商品》Gravity BNO055+BMP280 intelligent 10DOF AHRS

送料区分: 650

商品コード: DFROBOT-SEN0253

発売日: 2018-11-21

短いURL: ssci.to/5101

この商品は取寄商品です

¥4,846 (税込)
¥4,846 - ¥4,846
Current price ¥4,846

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

BNO055 is a new sensor IC for implementing an intelligent 9-axis Absolute Orientation Sensor. It is a system in package, integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope, a triaxial geomagnetic sensor and a 32-bit microcontroller. At just 5.2 x 3.8 x 1.1 mm³, it is significantly smaller than comparable discrete or system-on-board solutions and also is the sensor-hub product of the smallest size that supports Windows 8.1 at present. BNO055 is able to provide not only single data of the three kinds of sensors (accelerometer/gyroscope/geomagnetic), but also integrated data, such as quaternions, Euler angles or vectors. Besides, the built-in MCU frees the users from the complexities of algorithm processing, which provides application support in many aspects for smart phone, wearable device and so on.

BMP280 is an absolute barometric pressure sensor especially designed for mobile applications, which can realize the measurement of barometric pressure and temperature(the data can be converted into altitude through the specific formula). The sensor module is housed in an extremely compact package. It is based on Bosch’s proven Piezo resistive pressure sensor technology featuring high accuracy and linearity as well as long term stability and high EMC robustness. Numerous device operation options offer highest flexibility to optimize the device regarding power consumption, resolution and filter performance.

Now, this sensor module integrates BNO055 and BMP280 on one board to combine the two sensor into a 10DOF sensor module. The standard Gravity-I2C interface eases the integration process for customers, freeing them from the complexities of multivendor solutions so they can spend more time on product innovation, including novel applications such as wearable hardware. It is also the perfect choice for augmented reality, more immersive gaming, personal health and fitness, indoor navigation and any other application requiring context awareness.

Features

BNO055:

  • Outputs fused sensor data: quaternions, euler angles, rotation vector, linear acceleration, gravity, heading.
  • 3 sensors in one device: 16-bit gyroscope, 14-bit accelerometer, geomagnetic sensor
  • Intelligent Power Management: normal, low power and suspend mode available

BMP280:

  • Barometric pressure & Temperature sensor

Specification

Operating Voltage: 3.3V~5V DC
Operating Current: 5mA
Gravity-I2C Interface
BNO055 Accelerometer:

  • Acceleration ranges ±2g/±4g/±8g/±16
  • Low-pass filter bandwidths 1kHz~<8Hz
  • Operation modes: normal, suspend, low power, standby, deep suspend
  • On-chip interrupt control: motion-triggered interrupt-signal

BNO055 Gyroscope:

  • Ranges switchable from ±125°/s~2000°/s
  • Low-pass filter bandwidths 523Hz~12Hz
  • Operation modes: normal, fast power up, deep suspend, suspend, advanced power save.
  • On-chip interrupt control: motion-triggered interrupt-signal

BNO055 Geomagnetic:

  • Magnetic field range typical ±1300uT(x-,y-axis);±2500uT(z-axis)
  • Magnetic field resolution: ~0.3
  • Operating nodes: low power, regular, enhanced regular, high accuracy
  • Power modes: normal, sleep, suspend, force

BMP280 Digital Pressure Sensor:

  • Pressure range: 300~1100hPa
  • Relative accuracy: ±0.12hPa(±1m)
  • Absolute accuracy: ±1hPa(±8.33m)
  • Temperature range: 0℃~65℃
  • Temperature resolution: 0.01℃

Operating Temperature: -40~+80℃
Product Dimension: 32x27 mm/1.26x1.06”

Documents

  • Product wiki
  • ShippingList

    • Gravity:BNO055+BMP280 intelligent 10DOF AHRS(V1.0) Module x1
    • Gravity 4Pin IIC/I2C/UART Sensor Cable x1
