《お取り寄せ商品》Gravity: Analog ORP Sensor Meter For Arduino
送料区分: 650
商品コード: DFROBOT-SEN0165
発売日: 2018-11-21
短いURL: ssci.to/5043
この商品は取寄商品です
本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。
本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。
Introduction
In the ever-increasing need and awareness for health and safety, water has become a focus point for proper disinfection treatment as aftereffects of industrialization can become a danger for contamination of water via direct contact. Water is a critical control point of contact where proper treatment can greatly reduce these microbes, thereby reducing the chances of illness and pollution.
While traditional ORP meters are hard to get or use, this Analog ORP Meter is a highly compact ORP monitoring system that fits into your Arduino. This design configuration allows the user to accurately monitor ORP without having to add any additional circuitry or components to your design. Communication with the Analog ORP Meter is done using only simple wiring and programing.
ORP (Oxidation-Reduction Potential) is a measure of the ability of oxidation and reduction of aqueous solution, characterization of oxidizing or reducing the relative degree. Unlike a pH measurement that follows a logarithmic curve and therefore requires more calibration adjustments, ORP follows a linear relationship and does not need instrument adjustment as much as it needs electrode maintenance. ORP has proven to be a reliable method of measuring water quality and provides the operator with a single value of measurement regardless of which product, commodity, operation, treatment or sanitizer is used, and regardless of varying field conditions or method by which chemical is applied.
Applications
- Water Quality Testing
- Aquaculture
- Marine Science
- Hydroponic Gardening
- General Chemistry
Specification
- Module Power:+5.00V
- Module Size: 40mmX27mm(1.57"x1.06")
- Measuring Range:-2000mV—2000mV
- Suitable Temperature:5-70℃
- Accuracy:±10mv (25 ℃)
- Response Time:≤20sec
- ORP Probe with BNC Connector
- PH2.0 Interface(3 foot patch)
- Zero calibration button
- Power Indicator LED
Documents

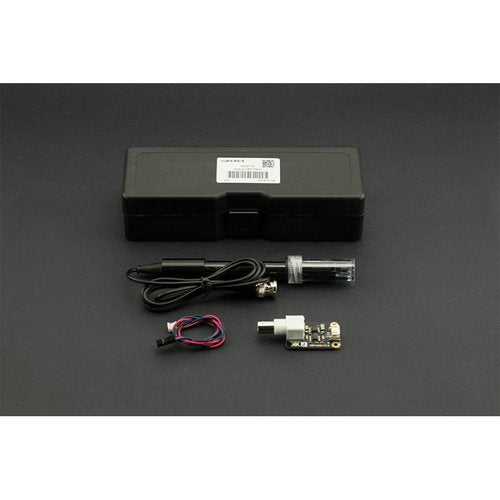

ShippingList
- ORP probe (BNC connector) x1
- ORP probe circuit board x1
- Analog cable x1
Projects
Project 1. Build KnowFlow: automatic water monitor
KnowFlow is the name of this water quality monitoring device, based on Arduino Uno. It can automatically monitor 5 parameters of water: pH, Temperature, Dissolved Oxygen, Electronic Conductivity, ORP.
- Central Control Unit: Arduino Uno (DFRobot Bluno in this case) and Expansion Shield (DFRobot Expansion Shield V7.1 in this case)
- Water Sensors: pH (pH probe and pH circuit board); EC (EC probe and EC circuit board); ORP (ORP probe and ORP circuit board); Temperature (temperature probe and temperature circuit board); Dissolved Oxygen (DO probe, BNC and circuit board); real time clock circuit board
- Data Storage: Micro-SD module, Micro SD card
- Fit and fix: mounting plate, water proof box( 200mm_150mm_75mm), water proof joint
- Other parts: Cables (Wires), bread board, bolts and nuts, screws, battery, double-sided adhesive, write on tape, small wrench, spiral cable wrap
上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。
商品コード: DFROBOT-SEN0165
