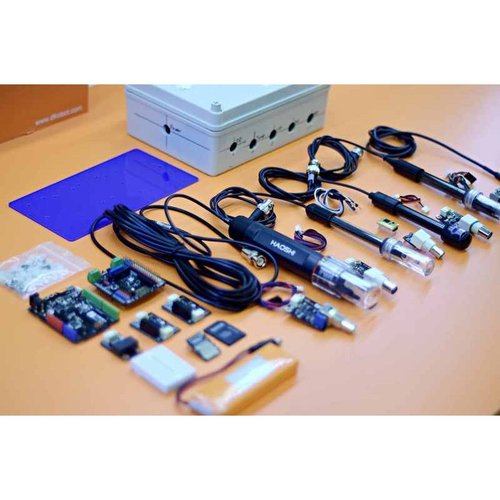

《お取り寄せ商品》Gravity: KnowFlow Basic Kit - A DIY Water Monitoring Basic Kit

送料区分: 650

商品コード: DFROBOT-KIT0131

発売日: 2018-11-21

短いURL: ssci.to/4927

この商品は取寄商品です

¥41,841 (税込)
¥41,841 - ¥41,841
Current price ¥41,841

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

KnowFlow is out of stock and will be shipped in the end of August.

KnowFlow is designed for environmentalists who want to monitor water quality and get real time data. It can monitor 3 parameters with basic kit: Temperature, pH and Electronic conductivities. The kit is based on Arduino, easy to change and add more sensors and modules. Currently it stores the data on a micro-SD card, also the data can be viewed on your smart phone via Bluetooth communication.
KnowFlow AWM (Automatic Water Monitor) is the first kit for Open-Source Science in KnowFlow team. KnowFlow team comes from NGO GreenSeed Organization. We are going to build a low-cost water monitor for the people who join the course. Then we found that a lot of people need the water monitor, so we release all the things to help people make themselves water monitors.

Using the water monitor, you can find the water quality by real time, also you can store the data into the TF card, analysis the data. It can be using on environment study, pollution sourcing and teaching ets.

KnowFlow team focuses on the solution of environment and agriculture problem. We can provide best tool by using hardware, software, courses and cloud technology. We can support scientists, students, citizens and environmentalists to using the Digital Technology at application in environment and agriculture. We want to promote the development of the Open Science and Open innovation by this efforts.

KnowFlow Kits is using the DFRobot Gravity Sensor series. Gravity Sensor series are easy to use and high compatibility. If you are not care about the code, you can just upload the sketch into the Bluno board without any coding job. After that you can find that the data is storing into the TF card.

KnowFlow can be powered by power bank or Li-po battery. For the advanced function, you add ORP sensor, and Dissolve Oxygen sensor in your kit.
You can find the courses video which is made by GreenSeed and MushroomCloud makerspace.

Attention

As a basic version of KnowFlow, this Kit is just INCLUDE pH、EC and Temperature sensors.

We will recommend using a 200mmx150mmx75mm waterproof case and a acrylic plate to mount KnowFlow sensors. You can find the dwg in GitHub.

Features

  • pH, EC, temperature auto record
  • Micro-SD Local storage
  • Extensible design
  • plug and play
  • Bluetooth built-in

Specification

  • Bluno Microcontroller: *On-board BLE chip: TI CC2540
  • Wireless Programming via BLE
  • Support AT command to config the BLE
  • Transparent communication through Serial
  • Upgrade BLE firmware easily
  • DC Supply: USB Powered or External 7V~12V DC
  • Microcontroller: Atmega328p
  • Bootloader: Arduino Uno (disconnect any BLE device before uploading a new sketch)
  • Compatible with the Arduino Uno pin mapping
  • Size: 60mm * 53mm (2.36"*2.08")
  • Weight: 30g
    • pH sensor:
  • Module Power: 5.00V
  • Module Size: 43 x 32mm (1.69x1.26")
  • Measuring Range:0 - 14PH
  • Measuring Temperature: 0 - 60 ℃
  • Accuracy: ± 0.1pH (25 ℃)
  • Response Time: ≤ 1min
  • pH Sensor with BNC Connector
  • pH2.0 Interface (3 foot patch )
  • Gain Adjustment Potentiometer
  • Power Indicator LED
    • EC sensor
    • Operating Voltage: +5.00 V
    • PCB Size: 45 × 32mm(1.77x1.26")
    • Measuring Range: 1ms/cm -- 20ms/cm
    • Operating Temperature: 5 - 40 ℃
    • Accuracy: ±10% F.S (using Arduino 10 bits ADC)
    • PH2.0 Interface (3-pin SMD)
    • Conductivity Electrode (Electrode Constant K = 1,BNC connector)
    • Cable Length of the Electrode: about 60cm(23.62")
    • DS18B20 Temperature Sensor(Waterproof)
    • Power Indicator
    • Analog Signal Isolator
    • Operating Voltage: 5.0V
    • Response Time: 4 seconds (Typ)
    • Analog Error (both ends): ± 20mV (Typ)
    • Interface Type: PH2.0-3P
    • No load Current: 75mA
    • Dimension: 42 * 32mm / 1.65 * 1.26 inch
    • Non-isolated Terminal (Arduino Side)
    • Supply Voltage: 5.0 ± 0.1V
    • Analog Output: 0 ~ 5.0V
    • Isolated Terminal (Sensor Side)
    • Output Voltage: 5.0 ± 0.2V
    • Analog Input: 0 ~ 5.0V

Documents

ShippingList
