《お取り寄せ商品》Gravity: Starter Kit for Arduino

本商品はお取り寄せ商品（輸入代行）です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います（請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です）。納期は仕入先に在庫がある場合、通常1.5～2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。

Introduction

Gravity Arduino Starter kit is a plug&play electronics toolkit that provides Arduino beginners and makers with the easiest experience of learning and playing with the Arduino platform.

Gravity Starter Kit includes a DFRduino UNO R3 microcontroller, which functions exactly the same as Arduino UNO, and 12 most popular and interesting electric components and sensors. With the IO expansion shield, sensors can be connected directly onto the board without jumper wires or bread board. Sensors in the kit belongs to DFRobot’s Gravity Series. These sensor are built highly modularized and interact with microcontrollers with 3-pin pinhead. Moreover, Different types of sensors can be easily identified by the logo printed on the back of the PCB board. All components included in the kit are fully compatible with Arduino microcontrollers. With Gravity Starter Kit, making your project will just be as simple as building blocks.

Gravity Starter Kit is also provided with tutorial, which aims to help Arduino learners understand Arduino programming. The tutorial goes through the installation of the software, the Arduino IDE, and its programming language, then teach you how to build electric circuit, how to use different electric components and their signaling. It also includes instruction for building projects from lighting up an LED to eventually use multiple components to make a real project such as “Fire Alarm” or “Weather Station". The tutorial is full of graph and is written in a simply way that anyone could build their own project using Gravity Starter Kit with no difficulty.

Arduino Tutorial Content List:

• Arduino Project introduction: What is Arduino？
• Arduino Projects 1: How Does a Device “Think”?
• Arduino Projects 2: Analog and Digital Signals
• Arduino Projects 3: Make an LED Blink
• Arduino Projects 4: Sensor Light
• Arduino Projects 5: Mini Lamp
• Arduino Projects 6: Sound Activated LED
• Arduino Projects 7: Fading LED
• Arduino Projects 8: Light Regulator
• Arduino Projects 9: Open Sesame
• Arduino Projects 10: Pandora's Box

Specification

• Microcontroller: DFRduino UNO R3
• Power Supply: 6*AA Batteries or 6-12V AC power adapter
• Dimension: 220cm * 165cm * 65 cm
• Weight: 300g

Documents

• Gravity Starter Kit for Arduino Turorial
• Example Code (Github)

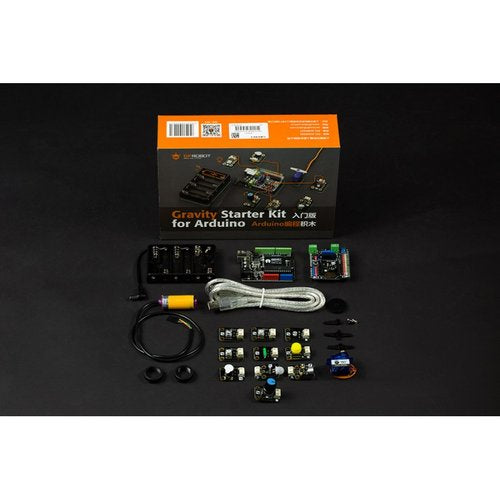

ShippingList

• DFR0216 DFRduino UNO R3 x1
• DFR0265 Gravity: IO Expansion Shield for Arduino V7.1 x1
• DFR0031-R Gravity: Digital Piranha LED Module-Red x 1
• DFR0031-G Gravity: Digital Piranha LED Module - Green x 1
• DFR0031-Y Gravity: Digital piranha LED module-Yellow x 1
• DFR0029 Gravity: Digital Push Button (Yellow) x 1
• DFR0026 Gravity: Analog Ambient Light Sensor x 1
• DFR0034 Gravity: Analog Sound Sensor x 1
• DFR0054 Gravity: Analog Rotation Sensor V1 x1
• DFR0032 Gravity: Digital Buzzer Module x 1
• SEN0171 PIR (Motion) Sensor x 1
• DFR0028 Gravity: Digital Tilt Sensor for Arduino V2 x 1
• SEN0019 Adjustable Infrared Distance Sensor x 1
• SER0039 9g Metal Gear Micro Servo (1.8Kg) x 1
• FIT0141 6xAA Battery Holder with DC2.1 Power Jack x 1
• FIT0056 USB Cable A-B for Arduino x 1

上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。

商品コード: DFROBOT-KIT0111
