SKU 4855

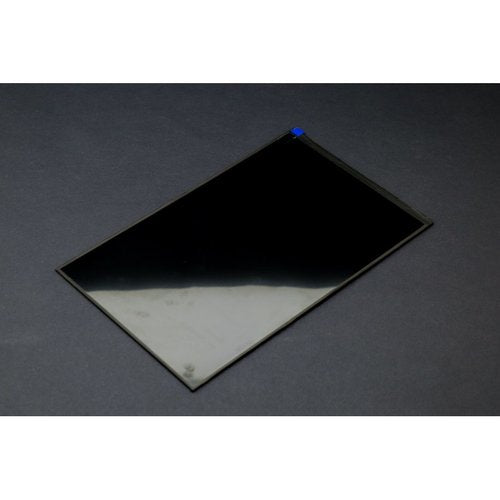

《お取り寄せ商品》10.1" 1200 x 1920 IPS Display for LattePanda

送料区分: 650

商品コード: DFROBOT-FIT0515

発売日: 2018-11-21

短いURL: ssci.to/4855

この商品は取寄商品です

¥22,079 (税込)
¥22,079 - ¥22,079
Current price ¥22,079

Introduction

This 10.1 inch high-resolution 1200*1920 IPS display is especially designed as a monitor for LattePanda (which could be used as windows 10 development board). It gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects,even adding a face for your robot, you can expand your imagination, make more fun.

Up to 224 PPI, this 1200x1920 display will creating an impression of sharp print-like text. And only one connection to the LattePanda is required, it connects via an FPC cable which handles power and signal conversion. So, there is no need for the adapter board and it releases HDMI port to build dual-screen.


Note:

  1. LattePanda and power supply are NOT included!
  2. Please use a 5V@3A power supply to driver the LattePanda with this high-resolution display.
  3. This is a portrait display, you can set in system to rotate the page
  4. NOT compatible with LattePanda Alpha and Delta edition.

Specification

  • Screen Size: 10.1 inch
  • Active area Dimensions: 135 * 217mm/5.31 * 8.54 inches (10:16)
  • Display Dimensions: 143 * 230 * 2.2mm/5.6 * 9.05 * 0.1 inches
  • Panel Type: TFT-LCD
  • Resolution (RGB): 1200x1920, WUXGA
  • Brightness: 300 cd/m^2
  • Contrast Ratio: 800:1 (Typ.)
  • Rated power: 3W
  • Signal input: MIPI-DSI
  • Weight: 190g
  • Documents

  • Dimension Diagram with Pinout
  • BIOS Update Tutorial
  • BIOS for 32G/64G
  • ShippingList

  • 10.1" 1200 x 1920 IPS Display for LattePanda x1
  • FPC cable x1

  • 商品コード: DFROBOT-FIT0515
