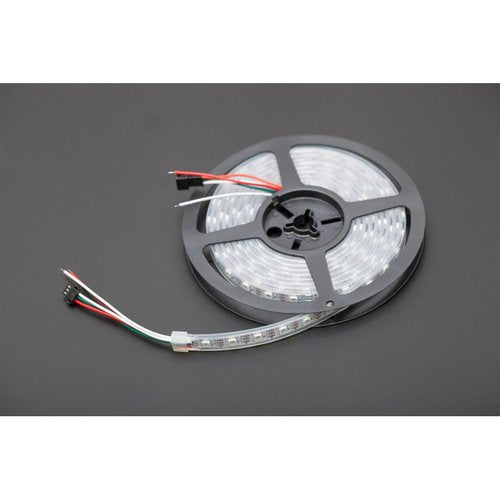

《お取り寄せ商品》Digital RGB LED Strip 180 LED - (3m)(weatherproof)
送料区分: 650
商品コード: DFROBOT-FIT0352
発売日: 2018-11-21
短いURL: ssci.to/4724
この商品は取寄商品です
本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。
本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。
Introduction
LED Strips always glow nicely in the dark and are super fun to play with. They can be used in home decorations, festives and interactive art installations. For example this Christmas someone put a phone-controlled strip around the Christmas tree for S.O., and it looked great!
This Digital RGB Strip is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. There are 60 RGB LEDs per meter, and you can control each LED individually. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. It also contains a precision internal oscillator and a 12V programmable constant current control part, effectively ensuring the consistency of pixel point light color.
With low voltage requiremnt and environment-friendly design, this Digital RGB LED Strip has high brightness, low power consumption and long life. Its additional features are awaiting your exploration!
Digital RGB LED Strip 180 LED ProjectsDigital RGB LED Strip 180 LED Project 1: Smart Xmas Tree with RGB LED Strip
Got stuck figuring out ideas for Christmas decors? Still thinking about putting LEDs strip and EL wires together? Simply puting LEDs and make them blinking is a has-been.
Hardware Components:
- Digital RGB LED Strip 180 LED x1
- Bluno - An Arduino Bluetooth 4.0 (BLE) Board x1
- Analog Sound Sensor x1
- Audio Analyzer x1
- IO Expansion Shield for Arduino V7 x1
- DC Barrel Jack Adapter - Female x1
- DC Power(5V@3.6A)
- Cables
Digital RGB LED Strip 180 LED Project 2. How to Make A Pet Wearable
In this tutorial we will use an Arduino Beetle BLE to make a simple wearable device for …your pet! My cat is the model of this wearable project.
Here are the main functions to implement:
-The wearable device will be built around a small jacket that the cat can wear.
-A light strip on the jacket will be light up with our cat’s steps (to put dog walkers to shame)
When the wireless jacket is paired with your phone via Bluetooth, it will control the light strip to flash on and off so that you can locate your pet quickly.
Hardware components:
- Beetle BLE - The smallest Arduino bluetooth 4.0 (BLE)
- Digital RGB LED Strip 60 LED - (3m)(weatherproof)
- LilyPad LED Micro - White (5pcs)
- DFPlayer - A Mini MP3 Player For Arduino
- 3.7V Polymer Lithium Ion Battery - 1000mAh
- Speaker
Features
- Integrated control circuit and RGB chip
- Built-in signal reshaping circuit
- Built-in electric reset circuit and power lost reset circuit
- Each pixel of the three primary color can achieve 256 brightness display,16777216 full color display,scan frequency no less than 400Hz/s
- Cascading port transmission signal by single line
- Data speed: 800Kbps
- over 50,000 hours life
Applications
- KTV/Nightclub/Hotel Wall
- Outdoor signs/banners
- Home decorative lighting
- Cars
- Lighting signals
Specification
- Working Voltage:3.3 to 6V
- Max Current: 1A(per meter) @5V
- Only one pin needed to send the data
- LED Controlling Individually
- Note:LEDs can work at 3.3V-6V but the luminance will be different
- Light source: SMD 5050 LED
- Material: FPCB
- ICModel: WS2811 (60 IC/m, each IC controls 1 LED)
- Grayscale: 256 (60pixels/m)
- Quantity: 60 LEDs / m, cuttable
- Emitting Angle: 180 °
- Power: 18W ± 10% /m
- Waterproof Level: weatherproof
- Weight: 150g/roll
Documents
ShippingList
- RGB LED Strip(WS2812) 3meters x1
- Adapter cable for easy connecting x1
上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。
商品コード: DFROBOT-FIT0352
