《お取り寄せ商品》Gravity I/O Expansion Shield for OpenMV Cam M7

送料区分: 650

商品コード: DFROBOT-DFR0578

発売日: 2018-11-21

短いURL: ssci.to/4447

この商品は取寄商品です

¥1,052 (税込)
¥1,052 - ¥1,052
Current price ¥1,052

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

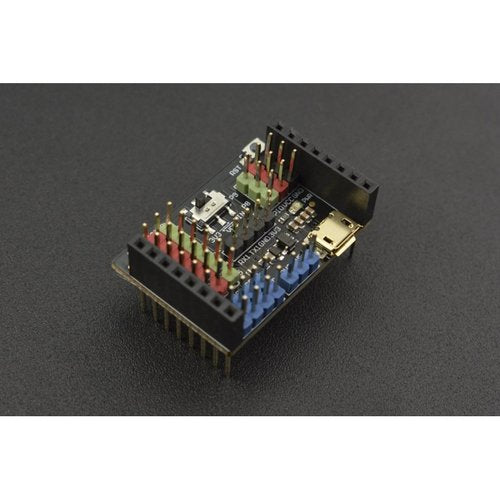

Gravity: I/O Expansion Shield for OpenMV Cam M7 is an expansion shield specially designed for the OpenMV Cam M7. It is compatible with various sensors and electronic modules of Gravity series, plug and play, no soldering required. It not only helps you avoid the complex wiring , welding and other operations, but also helps you quickly complete wiring and get started with the sensors or electronic modules, to build prototypes faster.

This expansion shield is equipped with a 5V USB external power supply port and a 3.3V/VIN power switch, which makes the expansion shield able to drive high current components such as motors and servos. There are 9 sets of digital ports, 1 set of analog port, 1 set of serial port and 2 sets of I2C ports on the expansion shield. Additional, there is an onboard 3.3V LDO, which meets the power demand of multiple modules at the same time.

Attention:

  1. The USB port of the expansion shield is only used for power supply, so it cannot be used for programming or debugging. The continuous current of the USB port is recommended to be controlled within 1A.
  2. When put the expansion shield on the OpenMV motherboard, please pay attention to the direction. The USB port of the expansion shield should be on the same side as the USB port of the OpenMV motherboard.
  3. Because OpenMV motherboard works at 3.3V, limited by the voltage, it does not support 5V analog input. All signal pins are 0~3.3V.
  4. If you need to drive high current components such as servos and motors, please connect them to P7~P9 ports, then connect the external power supply, and turn the power switch to VIN side. Otherwise, the OpenMV motherboard may be damaged due to high current.
  5. The power supply of P7,P8,P9 port can be selected 3.3V or VIN by the power switch. The power supply voltage of the remaining ports are all 3.3V.

Gravity: I/O Expansion Shield for OpenMV Cam M7 Connection With Servo

Features

  1. Onboard 5V external power port and 3.3V/VIN power switch, which makes the expansion shield able to drive high current components such as motors and servos
  2. Color-coded Gravity connector, compatible with various sensors or modules of Gravity series, plug and play, no soldering required
  3. 9 sets of digital ports, 1 set of analog port, 1 set of serial port, 2 sets of I2C ports

Specification

  • External Power Supply Voltage (onboard USB port): 5.0±0.1V
  • External Power Input Current (onboard USB port): <1A
  • Connector: Gravity series standard connector
  • Ports: 9 sets of digital ports, 1 set of analog port, 1 set of serial port, 2 sets of I2C ports
  • Interface Signal Level: High Level 3.3V, Low Level 0V
  • Analog Input Range: 0~3.3V
  • Onboard LDO Output Voltage: 3.3V
  • Onboard LDO Output Current: <500mA
  • Board Size: 35.6mm*24.8mm

Documents

  • Product wiki
  • More Documents
  • ShippingList

    • Gravity: I/O Expansion Shield for OpenMV Cam M7 x1
