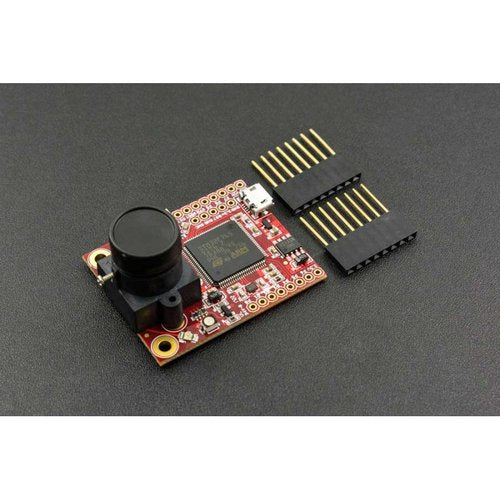

《お取り寄せ商品》OpenMV Cam M7 – A Machine Vision Camera--販売終了

送料区分: 650

販売終了

商品コード: DFROBOT-DFR0517

発売日: 2018-11-21

短いURL: ssci.to/4415

売り切れ
¥19,932 （税込）
¥19,932 - ¥19,932
¥19,932

本商品はお取り寄せ商品（輸入代行）です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います（請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です）。納期は仕入先に在庫がある場合、通常1.5～2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。


Introduction

The OpenMV Cam is a small, low power, microcontroller board which allows you to easily implement applications using machine vision in the real-world.
You program the OpenMV Cam in high level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++. This makes it easier to deal with the complex outputs of machine vision algorithms and working with high level data structures. But, you still have total control over your OpenMV Cam and its I/O pins in Python.
You can easily trigger taking pictures and video on external events or execute machine vision algorithms to figure out how to control your I/O pins.

Features

The STM32F765VI ARM Cortex M7 processor running at 216 MHz with 512KB of RAM and 2 MB of flash. All I/O pins output 3.3V and are 5V tolerant. The processor has the following I/O interfaces:

  • A full speed USB (12Mbs) interface to your computer. Your OpenMV Cam will appear as a Virtual COM Port and a USB Flash Drive when plugged in.
  • A μSD Card socket capable of 100Mbs reads/writes which allows your OpenMV Cam to record video and easy pull machine vision assets off of the μSD card.
  • A SPI bus that can run up to 54Mbs allowing you to easily stream image data off the system to either the LCD Shield, the WiFi Shield, or another microcontroller.
  • An I2C Bus, CAN Bus, and an Asynchronous Serial Bus (TX/RX) for interfacing with other microcontrollers and sensors.
  • A 12-bit ADC and a 12-bit DAC.
  • Three I/O pins for servo control.
  • Interrupts and PWM on all I/O pins (there are 10 I/O pins on the board).
  • And, an RGB LED and two high power 850nm IR LEDs.

    • The OV7725 image sensor is capable of taking 640x480 8-bit Grayscale images or 640x480 16-bit RGB565 images at 60 FPS when the resolution is above 320x240 and 120 FPS when it is below. Most simple algorithms will run at above 30 FPS. Your OpenMV Cam comes with a 2.8mm lens on a standard M12 lens mount. If you want to use more specialized lenses with your OpenMV Cam you can easily buy and attach them yourself.

    Applications

    The OpenMV Cam can be used for the following things currently (more in the future):

  • Frame Differencing
  • Color Tracking
  • Marker Tracking
  • Face Detection
  • Eye Tracking
  • Optical Flow
  • QR Code Detection/Decoding
  • Data Matrix Detection/Decoding
  • Linear Barcode Decoding
  • AprilTag Tracking
  • Line Detection
  • Circle Detection
  • Rectangle Detection
  • Template Matching
  • Image Capture
  • Video Recording

    • Specification

    Processor ARM® 32-bit Cortex®-M7 CPU w/ Double Precision FPU 216 MHz (462 DMIPS) Core Mark Score: 1082 (compare w/ Raspberry Pi Zero: 2060)
    RAM Layout 128KB .DATA/.BSS/Heap/Stack 384KB Frame Buffer/Stack (512KB Total)
    Flash Layout 32KB Bootloader 96KB Embedded Flash Drive 1920KB Firmware (2MB Total)
    Supported Image Formats Grayscale RGB565 JPEG (and BAYER)
    Maximum Supported Resolutions Grayscale: 640x480 and under RGB565: 320x240 and under Grayscale JPEG: 640x480 and under RGB565 JPEG: 640x480 and under
    Lens Info Focal Length: 2.8mm Aperture: F2.0 Format: 1/3" Angle (Field-of-View): 115° Mount: M12*0.5 IR Cut Filter: 650nm (removable)
    Electrical Info All pins are 5V tolerant with 3.3V output. All pins can sink or source up to 25mA. P6 is not 5V tolerant in ADC or DAC mode. Up to 120mA may be sinked or sourced in total between all pins. VIN may be between 3.6V and 5V. Do not draw more than 250mA from your OpenMV Cam's 3.3V rail.
    Weight 16g
    Length 45mm
    Width 36mm
    Height 30mm

    Documents

  • Quick reference for the openmvcam
  • OpenMV Cam Schematic
  • Unofficial 3D CAD Model

    • ShippingList

  • OpenMV Cam M7 x1
  • Pin Header x2
