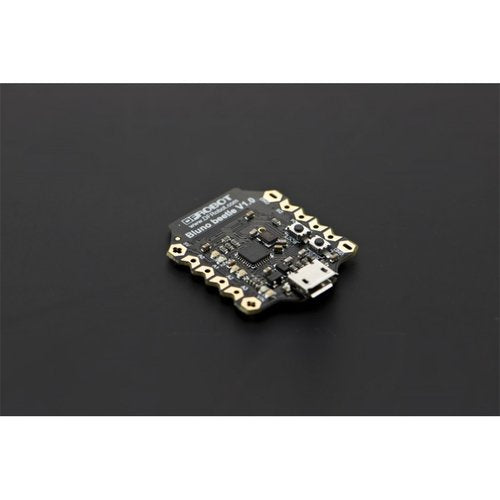

《お取り寄せ商品》Beetle BLE - The smallest Arduino bluetooth 4.0 (BLE)

送料区分: 650

商品コード: DFROBOT-DFR0339

発売日: 2018-11-21

短いURL: ssci.to/4312

この商品は取寄商品です

¥2,688 (税込)
¥2,688 - ¥2,688
Current price ¥2,688

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

The Beetle Ble (Former name as Bluno Beetle) is an Arduino Uno based board with bluetooth 4.0 (BLE). It is probably the smallest Arduino BLE board in the market. It uses standard Arduino IDE to upload codes via without any extra library and drivers. This Beetle BLE is another milestone in the Beetle line, which makes DIY users have more options in the project design. It is fully compatible with Bluno
in instructions and procedures. Support Bluetooth HID and ibeacon modes.
The Beetle BLE offers a super tiny and low cost Arduino with bluetooth 4.0. The Beetle BLE can be used for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles wearable and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.

Just like a native Arduino board, but with Bluetooth 4.0. An APP called Play Bluno is avaliable on IOS and Android which gives a quick access to this little tiny board.
It not only supports USB programming, but also wireless uploading method. With the V shaped gilded I/O interface, it is convenient to screw conductor wire on it, which could a good choice in the wearable market.
Introduction to Bluno Series

Introduction to Bluno Series

Features

  • ATmega328@16MHz
  • Bluetooth Low Energy (BT 4.0)
  • Micro USB port
  • Super Compact Size
  • Support Bluetooth HID and ibeacon
  • Comaptible with all DFRobot Bluno Series
  • Support Wireless Programming

Specification

  • Bluetooth Chip: CC2540
  • Sensitivity: -93dBm
  • Working Temperature:-10 ℃ ~ +85 ℃
  • Maximun Distance:50m(1968.50")(Open field)
  • Microcontroller: ATmega328
  • Clock frequency: 16 MHz
  • Operating voltage: 5V DC
  • Input voltage: <8V (Vin < 8V)
  • Digital Pin x4
  • Analog Pin x4
  • PWM Output x2
  • UART interface x1
  • I2C interface x1
  • Micro USB interface x1
  • Power port x2
  • Size:28.8mm X 33.1mm(1.13" x 1.30")
  • Weight:10g

Documents

ShippingList

  • Beetle BLE x1

Projects

Project 1. How to Make a Jumping Paper Frog

Back in the 80’s and 90’s kids made their own toys like paper planes and spinning tops. These toys accompanied them throughout their childhood. Now let's make a frog.
1. Bluno Beetle controller
2. 3.7V Battery
3. Analog Sound Sensor ( compatiable with Arduino)
4. Player module

Bluno Beetle Project 2:How To Make a Color Light based on Bluno Beetle

Materials
- Bluno Beetle ( The smallest Arduino bluetooth 4.0 (BLE) )
- Wireless charging battery
- LSM303 Breakout Board - Tilt Compensated Compass
- Digital RGB LED Strip 60 LED - (3m)(weatherproof)
- Light Disc with 7 SMD RGB LED

Bluno Beetle Project 3:let’s make an AR Pikachu with Bluno Beetle

Materials
- Bluno Beetle ( The smallest Arduino bluetooth 4.0 (BLE) )

Bluno Beetle Project 4:How to Make A Pet Wearable with Bluno Beetle

Components

Beetle BLE - The smallest Arduino bluetooth 4.0 (BLE)
Digital RGB LED Strip 60 LED - (3m)(weatherproof)
LilyPad LED Micro - White (5pcs)
DFPlayer - A Mini MP3 Player For Arduino
3.7V Polymer Lithium Ion Battery - 1000mAh
Speaker

Beetle Project 5: DIY Deer Clock

Project introduction: We are going to make a table clock showing time in a lovely way. This product has quite cute look and the LED screen make it cool.
The hardwares you need to do this project:
Gravity: I2C SD2405 RTC Module
Beetle - The Smallest Arduino
FireBeetle Covers-24×8 LED Matrix (White)
Micro USB cable



上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。
