SKU 5020

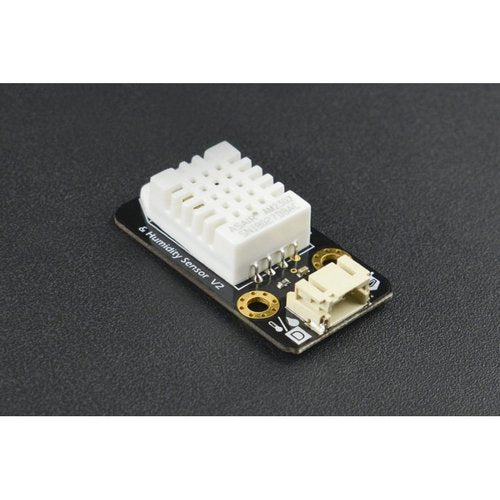

《お取り寄せ商品》DHT22 Temperature and Humidity Sensor

送料区分: 650

商品コード: DFROBOT-SEN0137

発売日: 2018-11-21

短いURL: ssci.to/5020

この商品は取寄商品です

¥1,617
¥1,617 - ¥1,617
Current price ¥1,617

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

DHT22 capacitive humidity sensing digital temperature and humidity module is one that contains the compound has been calibrated digital signal output of the temperature and humidity sensors. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability.

The sensor includes a capacitive sensor wet components and a high-precision temperature measurement devices, and connected with a high-performance 8-bit microcontroller. The product has excellent quality, fast response, strong anti-jamming capability, and high cost.

Standard single-bus interface, system integration quick and easy. Small size, low power consumption, signal transmission distance up to 20 meters, making it the best choice of all kinds of applications and even the most demanding applications.

DHT22 has higher precision and can replace the expensive imported SHT10 temperature and humidity sensor.

It can measure the environment temperature and humidity to meet the high demand.

The product has high reliability and good stability. If it's used and combined with special sensor Arduino expansion board,it will be easily implemented the interactive effect which related to the temperature and humidity perception.

Note: DHT22 digital temperature and humidity sensor is designed for analog sensor interfaces.The analog port will be used as the digital which will not occupy the original digital port of the Arduino.The lines of the sensor which can transform the analog function to digital that can be use on digital port.

DHT22 temperature sensor tutorial:

  • ESP32 Arduino: Getting temperature from a DHT22 sensor
  • ESP32 Arduino: DHT22 Minimum Sampling Period
  • ESP32 Arduino: Getting humidity measurements from a DHT22 sensor
  • ESP8266 Arduino Tutorial: Getting temperature and humidity with a DHT22 sensor
  • Project 1: Environmental Monitoring System Based on OBLOQ-IoT Module
    This product is mainly applied in electronic laboratory to monitor and control indicators such as temperature, humidity, light and dust, and timely upload them to the cloud data space to achieve remote monitoring and control of dehumidifier, air purifier, exhaust fan and dimmable light, etc. in the laboratory.
    Hardware List:

    DFRduino UNO R3 - Arduino Compatible
    Gravity: UART OBLOQ – IOT Module (Microsoft Azure)
    DHT22 Temperature and Humidity Sensor
    Sharp GP2Y1010AU0F Compact optical Dust Sensor
    Gravity: i2C BMP280 Barometer Sensor
    Gravity: Analog Ambient Light Sensor For Arduino
    LCD12864 Shield for Arduino
    Quadruple relay module

    Specification

    • Supply Voltage: 5V
    • Temperature Range:-40-80℃ / resolution0.1℃ / error <±0.5℃
    • Humidity Range: 0-100%RH / resolution0.1%RH / error±2%RH
    • Wiring map: VCC,GND,S
    • Size: 38 x 20mm(1.50x0.79")

    Documents

    ShippingList

    • DHT22 sensor x1
    • Analog sensor cable x1
