SKU 4400

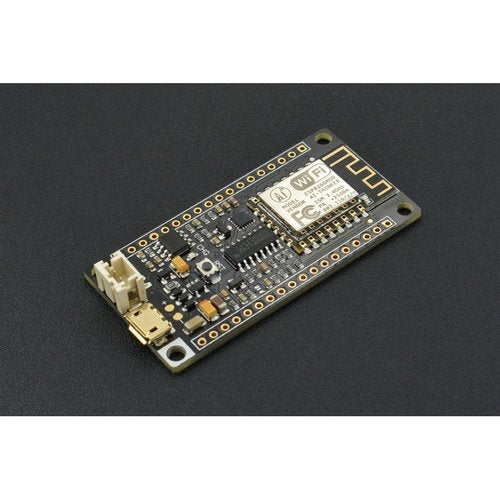

《お取り寄せ商品》FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

送料区分: 650

商品コード: DFROBOT-DFR0489

発売日: 2018-11-21

短いURL: ssci.to/4400

この商品は取寄商品です

¥1,474
¥1,474 - ¥1,474
Current price ¥1,474

本商品はお取り寄せ商品(輸入代行)です。他の商品と同時にご注文いただいた場合、全ての商品が入荷してから出荷します。お急ぎの商品と一緒にご注文なさらないよう、ご注意下さい。この商品のお買い求めの手続きを完了し、代金のお支払いをいただいてから、お取り寄せを行います(請求書払いのご契約をいただいている場合には、もちろんこの契約が優先です)。納期は仕入先に在庫がある場合、通常1.5~2ヶ月ほどです。発注は定期的に、まとめて行いますので、お取り寄せ依頼時に仕入先在庫があっても、当社発注時に仕入先在庫がない場合、納期は未定となります。

本商品は電気用品安全法、電波法、その他日本の法律に準拠していない可能性があります。本商品のお取り寄せは輸入代行サービスです。お取り寄せのご案内をご確認の上、ご注文ください。当社はお取り寄せ品に関して一切の責任を持ちません。お客様自身で適法かつ安全にご利用いただけることを充分にご確認いただき、お取り寄せをご依頼ください。また商品が輸入できないなどの問題が発生した場合、ご注文をキャンセルする場合があります。



Introduction

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC and multiple interfaces such as HSPI, UART, PWM, I2C and I2S. In DTIM10, the full power consumption to maintain WiFi connection reached to 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage.
Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. Operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of board.
FireBeetle Products
In programming stage, Firebeetle Board-ESP8266 supports RTOS SDK in Linux, arduino IDE and Micropython.

NOTE: There still remains some bugs to be detected and fixed by developers. In some cases some peripherals may not work perfectly by embedding Arduino sample codes in ESP8266. Much more functions implemented in Arduino are still under development and improvement. An alternative way is to change development tool such as RTOS and MicroPython towards a more operating-friendly experience in some conditions.

Project 1. ESP8266 Project: Desktop Weather Station With WIFI

Hardware needs:

Features

  • Compatible with FireBeetle series
  • Compatible with Arduino programing
  • Built-in 32-bit Tensilica L106 MCU and 10-bit ADC
  • Support RTOS SDK in Linux, Arduino IDE and Micropython.
  • Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz)
  • Support TCP / IP
  • Support Lithium Battery (The Maximum charge current: 500mA)
  • Support Low Power Consumption
  • Support OTA Updating
  • Support STA/AP/STA+AP
  • Specification

  • Operating Temperature: -40℃~+85℃
  • Operating Voltage: 3.3V
  • Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V)
  • Microcontroller: Tensilica L106 (32-bit MCU)
  • Clock Speed: 80MHz (Maximum: 160MHz)
  • SRAM:50KB
  • External Flash Memory: 16MB
  • DC Current in the Low-Power-Consumption: 46uA
  • Average Operating Current: 80mA
  • Maximum Discharging Current: 600mA (LDO-3.3 Output)
  • Maximum Charging Current: 500mA
  • Digital Pin x10
  • Analog Pin x1
  • SPI interface x1
  • I2C interface x1
  • IR interface x1
  • I2S interface x1
  • Interface: XH2.54mm Pin (No soldering default)
  • In Combination of Wi-Fi MAC/ BB/RF/PA/LNA
  • WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi
  • Dimension: 58 × 29(mm)
  • Operating Temperature: -10℃~+55℃
  • Mounting Hole Dimension: 53 x 24(mm)
  • Weight: 24g
  • Documents

  • Product WiKi
  • More Documents
  • ShippingList

  • FireBeetle Board-ESP8266 ×1
  • 18pin-2.54mm ×2
  • 18pin-2.54mm Female Holder ×2


  • 上記製品説明はDFRobotのサイトのHTMLをそのまま転載しております。当社サイトでの表示確認をしていないため表現が正しくない部分が残っております。また情報の更新が遅れている可能性もありますので、製品情報についてはDFRobot社のサイトをご確認ください。当社コード番号"DFROBOT-"以降のコードを製品検索に利用できます。たとえば、DFROBOT-DFR0470-ENTは、”DFR0470-ENT”とDFRobot社のサイトにて検索ください。



    商品コード: DFROBOT-DFR0489
